Arm/Disarm Multilevel Implementation

What Arm/Disarm Multilevel Control Does​

Arm/Disarm Multilevel Control enables users to control and monitor device states across Customer, Site, Device Group (Mobile Tower), and Device levels. It delivers bulk operations, real-time state synchronization, improved UI visibility, and backend enhancements — ensuring scalable and reliable device state management.

Why It Matters​

Without centralized Arm/Disarm control, managing device states across large deployments requires manual intervention at every level. Multilevel control ensures a single action propagates instantly across all associated devices — with real-time visibility at every level

How It Works​

Arm/Disarm capabilities are supported across:

  • Customer
  • Site
  • Device Group / Mobile Tower
  • Device image

Each level provides:

  • Real-time status visibility.
  • Direct Arm/Disarm actions.
  • Aggregated state representation. image

Queued Operation Behavior (Bulk Arm/Disarm)​

When performing Arm/Disarm operations at Customer, Site, Device Group, and Device levels, the system uses a queued processing mechanism to ensure reliable and consistent execution:

  • Once an Arm/Disarm action is triggered, the request is processed asynchronously via a queue.
  • During processing: Arm/Disarm buttons are temporarily hidden or disabled at all applicable levels. Users cannot trigger another action until the current operation is completed.

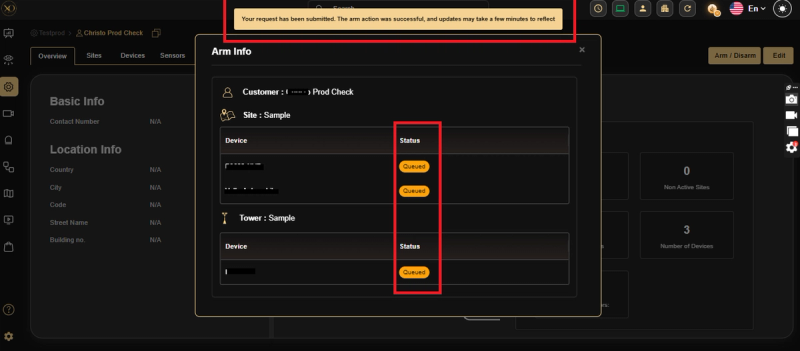

  • At the Device level: Status will be shown as "Queued" while the operation is in progress.
  • After completion: Arm/Disarm buttons reappear and all levels reflect the updated final state. image

Arming Workflow​

Stream-based queue processing including:

  • Request ingestion.
  • Event dispatch (Talos).
  • Redis updates.
  • MongoDB updates.
  • TimescaleDB audit logging.

Key Capabilities​

Hierarchical Control​

  • Arm/Disarm actions available at all hierarchy levels.
  • Higher-level actions automatically propagate to associated devices.
  • Ensures consistent state alignment.

Bulk Operations​

  • Bulk Arm/Disarm supported at Customer, Site, and Device Group levels.
  • Individual control available at Device level.

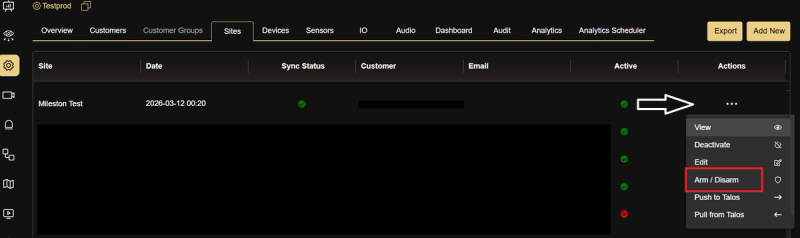

  • Accessible via list view and overview screens.

State Visibility​

Displays consolidated status:

  • Armed
  • Disarmed
  • Partially Armed (mixed states)

Provides both aggregated and per-device visibility.

Real-Time Synchronization​

  • Immediate updates across UI, backend, and APIs.
  • Eliminates delays in state reflection.

UI Enhancements​

  • Controls integrated into overview pages, action panels, and data tables.
  • Consistent and user-friendly interface across all levels.

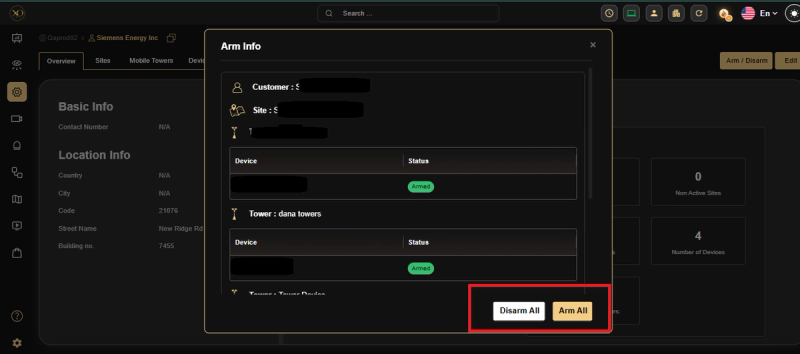

  • Arm Info modal — shows Customer and Site context at the top, followed by a per-device status table (Armed / Deactivated).
  • Bulk actions — Arm All and Disarm All available directly from the modal.
  • Status chips use consistent color coding: green = Armed, yellow = Deactivated, red = Disarmed, blue = Arm Not Supported.

Permission-Based Access​

  • Role-based access control for Arm/Disarm actions.
  • Only authorized users can perform operations.

Detailed Functionality​

LevelFunctionality
CustomerCentralized control with aggregated visibility across all sites and devices.
SiteManage and monitor all devices within a site.
Device Group / Mobile TowerGroup-level control with bulk operations.
DeviceIndividual device control with immediate status updates.

Arm/Disarm Status Representation​

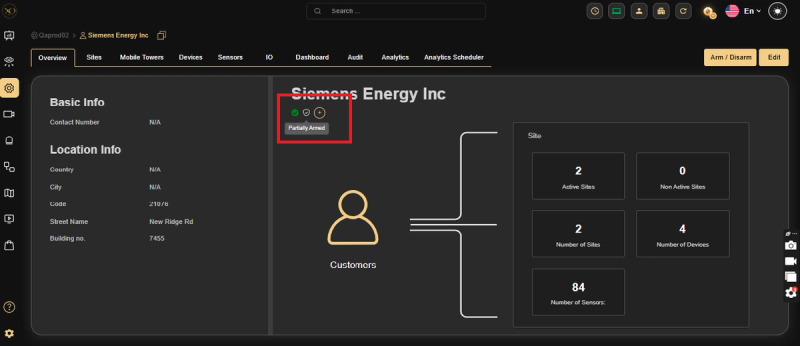

  • Customer / Site / Group Levels — Displays Armed, Disarmed, or Partially Armed based on device states. image

Real-World Use Cases​

  • A security manager arms all devices across 50 sites with a single Customer-level action — all devices update instantly without manual intervention.
  • A maintenance window is scheduled at a specific site — the admin disarms at the Site level, preventing false alarms during the maintenance period.
  • A supervisor monitors a mixed fleet — the Partially Armed status immediately highlights which sites have devices in conflicting states.

Best Practices​

  • Use higher-level Arm/Disarm actions for bulk operations — avoid manually arming individual devices when a Site or Customer action achieves the same result faster.
  • Wait for the queued operation to complete before triggering another — buttons are disabled during processing to prevent conflicting actions.
  • Monitor the Partially Armed status regularly — it indicates inconsistent device states that may need investigation.
  • Ensure operators have the correct role-based permissions before deploying Arm/Disarm controls to their accounts.

Additional Details​

API & Backend Enhancements​

GCXONE APIs:

  • Update Arm State — Triggers hierarchy-based arm/disarm actions.
  • Get Arm State — Returns device-level states and aggregated status.

Genesis APIs:

  • api/v1/device/patchDeviceArmState — Updates device arm state with timestamp (armStateUpdatedTime).
  • api/v1/device/getDeviceIdsByHeirachyId — Enhanced to filter unsupported or inactive devices.

Analytics Update​

  • Added new entry in MongoDB Analytics collection: productName = "Device Arming".
  • Includes supportedDevices configuration for arming support.

User Impact​

  • Enables efficient bulk and hierarchical device control.
  • Improves visibility and monitoring of device states.
  • Ensures faster, reliable, and consistent system performance.
  • Enforces secure access through role-based permissions.
