ADPRO

Introduction

This guide describes the steps required to configure a ADPRO device for integration with the GCX-ONE platform.

ADPRO Config Guide with GCX-ONE

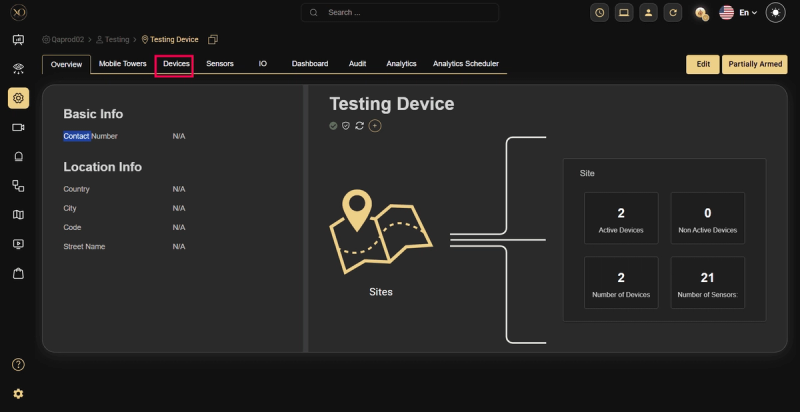

Step 1: Navigate to the Devices tab. ⤢ expand

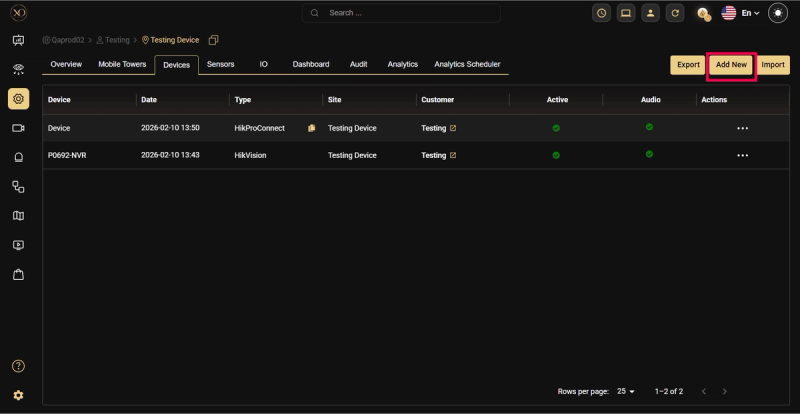

Step 2: Click the Add button. ⤢ expand

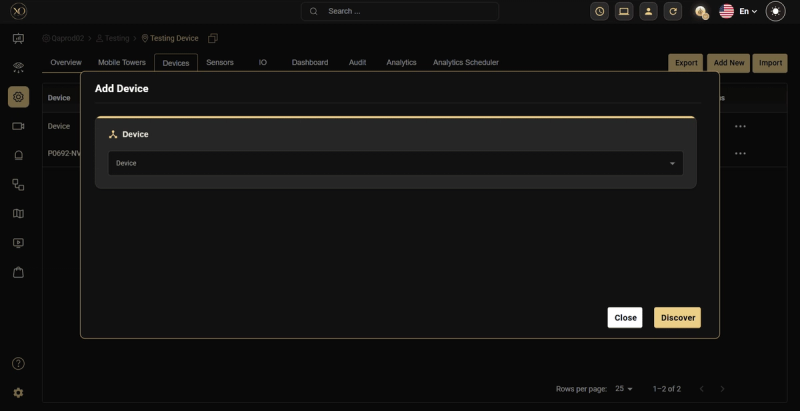

Step 3: The Add Device dialog will be displayed. ⤢ expand

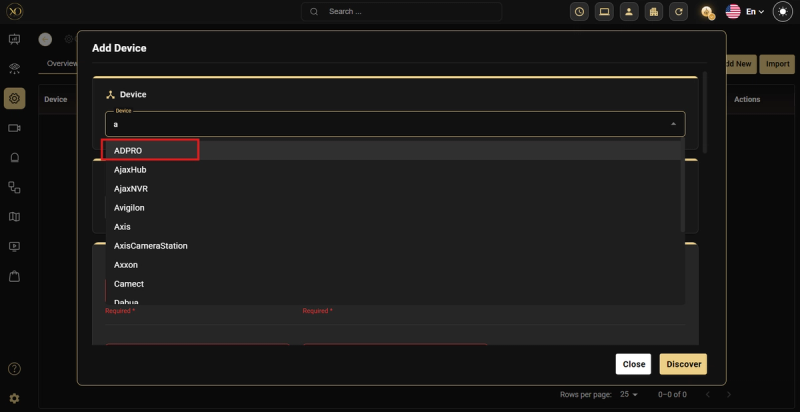

Step 4: In the dialog, open the Device dropdown and select ADPRO. ⤢ expand

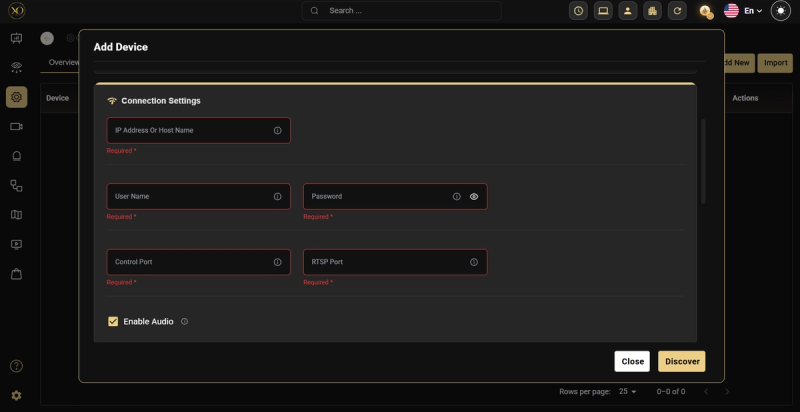

Step 5: Enter all required fields: IP Address or Host, Username, Password, RTSP Port, Control Port.

****

⤢ expand

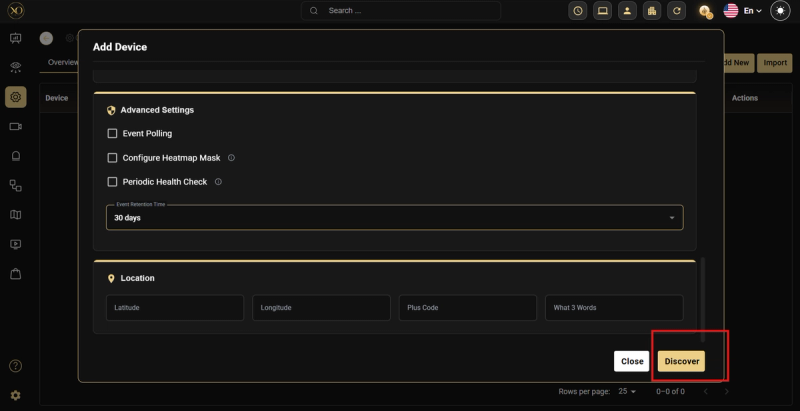

Step 6: Click Discover. ⤢ expand

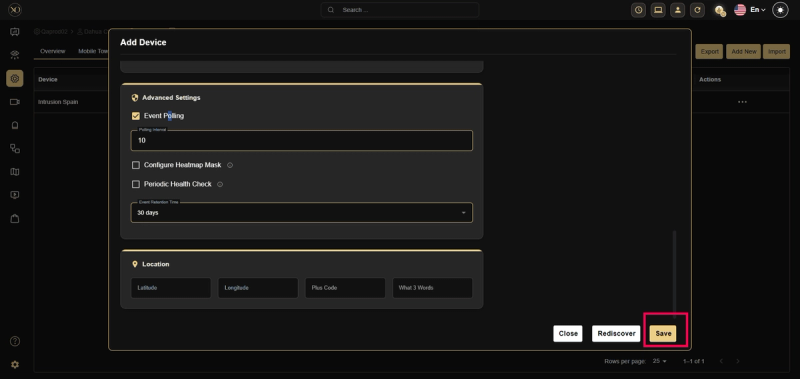

Step 7: Once the device is successfully discovered, click Save. ⤢ expand
